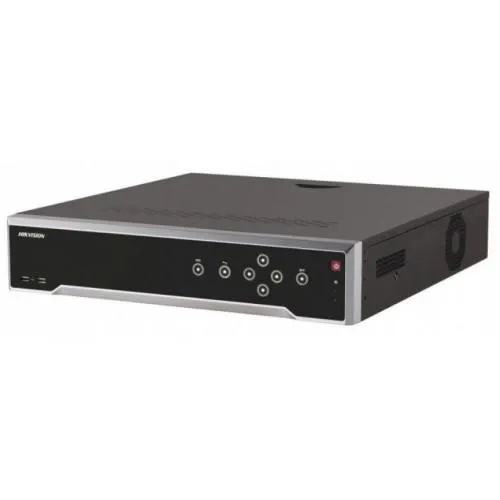

HIKVISION Embedded Plug & Play 4K NVR - 32 Channel (DS-7732NI-I4)
Product Description
- Up to 12 Megapixels resolution recording.
- Support 1-ch HDMI, 1-ch VGA, HMDI at up to 4K (3840×2160) resolution.
- 16/32-ch network cameras can be connected with 160M/256M incoming bandwidth.
- Up to 4 SATA interfaces.
- Support dual-os to ensure high reliability of system running.
- Support various VCA detection alarm and VCA search.
- Support H.265/H.264/MPEG4 video formats.
Specification
Video/Audio Input
IP video input: 32-ch
Two-way audio input: 1-ch, RCA (2.0 Vp-p, 1kΩ)
Network
Incoming bandwidth: 256Mbps
Outgoing bandwidth: 256Mpbs
Remote connection: 128
Video/Audio Output
HDMI Output: 1-ch, resolution: 4K (3840*2160)/60Hz, 4K
(3840*2160)/30Hz, 1920*1080P/60Hz, 1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz
Recording Resolution: 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / UXGA /720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Audio Output: 1-ch, RCA (2.0Vp-p, 1KΩ)
Synchronous Playback: 16-ch
VGA Output: 1-ch, resolution: 1920*1080P/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz
Decoding
Live view / Playback: 12MP/ 8MP/ 6MP/ 5MP/ 4MP/ 3MP/ 1080p/ UXGA/ 720p/ VGA/4CIF/DCIF/2CIF/CIF/QCIF
Capability: 4-ch@8MP,16-ch@1080P
Hard Disk
SATA: 4 SATA interfaces for 4HDDs
Capacity: Up to 6TB capacity for each HDD
External Interface
Network Interface: 1RJ-45 10/100/1000Mbps self-adaptive Ethernet interface
Serial Interface: RS-232; RS-485;
USB Interface: Front panel: 2 × USB 2.0
Rear panel: 1 × USB 3.0
Alarm In: 16-ch
Alarm Out: 4-ch
General
Power Supply: 100 to 240 VAC
Consumption (without hard disk and POE): ≤20 W
Working Temperature: -10 ºC ~ 55 ºC ( 14 ºF~ 131 ºF)
Working Humidity: 10 % ~ 90 %
Chassis: 19-inch rack-mounted 1.5U chassis
Dimensions: 445 × 390 × 70 mm (17.5″× 15.3″ × 2.8″)
