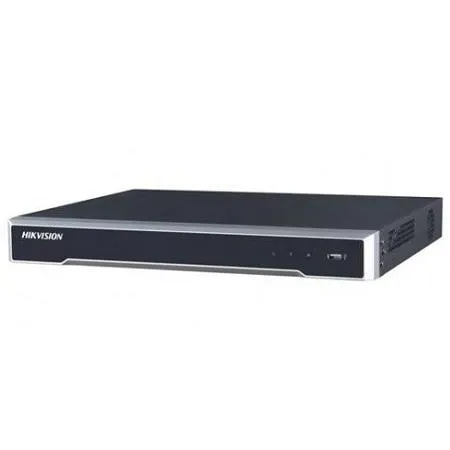

HIKVISION Embedded Plug & Play 4K NVR - 8 Channel (DS-7608NI-K2/8P)
Product Description
- 4K video display on main HDMI
- Built in PoE Switch for direct IP camera connection
- Multiplex (Live/Playback, Recording, Backup, Networking)
- Various recording features (Normal, schedule, motion, alarm)
- Controlled locally by USB mouse or remotely through Ethernet connection with CMS, Web page and Smartphone
- SDK for Windows and Linux system
Technical Specifications
Operating System: Embedded OS
Video Compression: H.264, H.265, H.264
IP Inputs: Up to 8 channels (depending on available recording bandwith)
Recording Bandwidth: max. 160 Mbps
HDMI/VGA output: Up to 8 Megapixel
Recording Mode: Continuous, Event Alarm, Motion (Camera), Video Loss
Playback: Synchronised playback of max. 8 cameras
Motion Detection: On/ Off/ Area Setting
Audio Inputs: 1 CH RCA (2.0Vp-p, 1KOhms)
Audio Outputs: 1 CH, RCA
Video Outputs: 1x HDMI, 1x VGA
Display Speed: Up to 25 fps per camera (depending on hardware and available
network bandwidth)
Display resolution: Up to 4K on HDMI, VGA: 1920x1080, 1280x1024
Basic Internal Storage: No
Max. Storage Capacity: 2 Hard disk (3.5 inch SATA)
Control: Mouse (USB)
Search Mode: Date/Time, Event Alarm, Motion, Search Backup
External Backup: USB HDD, USB Memory, USB External, DVD-ROM, Network
Network Interface: 8x 10/100 Base T/TX PoE (RJ-45) 1x 10/100/1000 Base T/TX (RJ-45)
Outgoing Bandwidth: max. 80 Mbps
Network Protocol: DDNS, DHCP, DNS, IPv4/IPv6, iSCSI, NFS, NTP, PPPoE,RTP,
SADP, SMTP, SNMP, TCP/IP, UDP
Client software: iVMS4200, iVMS4500 (iOS / Androïd), Web browser (IE 7 / Safari / Chrome / Firefox)
Serial Interface(s): 1x USB 3.0
Alarm Inputs: 4
Alarm Outputs: 1
Operating Temperature: -10°C ~ 55°C
Humidity: 10 ~ 90%RH
Supply Voltage: 100 ~ 240 Vac, 50/60Hz
PoE Budget: 120 W
Dimensions (W x H x D): 385 x 52 x 315 mm - 15.16 x 2.05 x 12.4 In
Power Consumption (W): 180
Weight: 3.00 kg - 6.61 lbs
